IC Test Socket - Multiple Styles Available (Clame Shell Lid Focus)

Need the right IC test socket for your chip? Provide your drawings and describe your use case—our experts will recommend the best fit! Whether you prioritize quick flip-top access, precise adjustment, or advanced thermal management, we have optimized solutions for fast and reliable testing. Get a custom-matched socket for seamless inspection and validation.

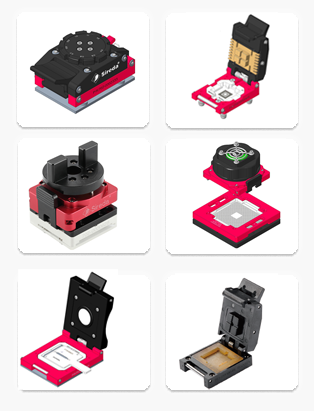

Flip-top Socket

Suitable for quick chip replacement with under 200 balls to enhance efficiency.

Rotating knob top

Ideal for chips with over 200 balls to prevent ball damage during handling.

Cover with thickness adjustment dial

Allows rapid adaptation for chips of varying thicknesses.

Pressure block with heat sink

Incorporates cooling features to manage heat during operations.

Top-mounted cooling fan

Ensures active thermal regulation for prolonged usage stability.

Below are the essential specifications engineers evaluate when selecting test sockets for maximum reliability and throughput:

IC Test Socket: Core Specifications

We provide a complete range of IC test socket solutions, from industry-standard designs to fully customized configurations.

Our standard offerings include:

• BGA Test Sockets (pitch 0.3mm to 1.27mm)
• QFN/LGA Sockets (low insertion force designs)
• High Frequency Sockets (up to 67GHz performance)
• Burn-in and Automotive Sockets (extended durability versions)

Need something different? We specialize in custom socket designs for:

• Non-standard IC packages
• Extreme environment testing (high temp/vibration)
• High current applications
• Special signal integrity requirements

Get exactly what you need:

• Free design consultation
• Fast prototyping (samples in 14 days)
• Custom testing validation

[Contact our engineering team] today to discuss your specific test socket requirements.
